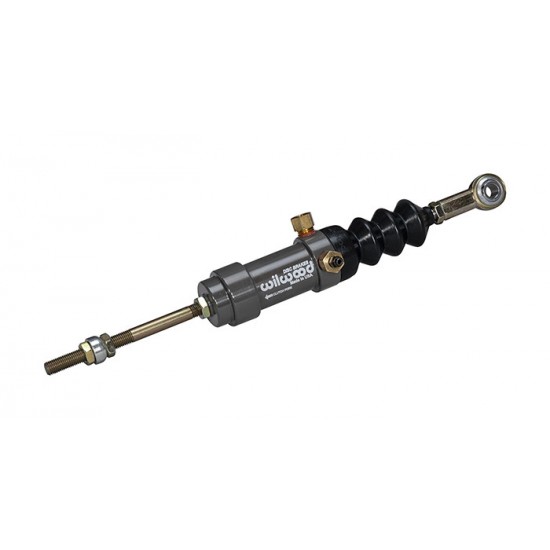

Wilwood 260-1333 Pull Type Clutch Slave Master Cylinder

Slave Cylinder - Product Summary

This “Pull Type” slave cylinder is made from billet aluminum for high strength and plated with a tough anti-corrosion finish. The stainless steel push rod has a longer stroke than most cylinders assuring a full release of the clutch. This slave cylinder is ideal for Drag Racing, Late Model Stock, Pro Series and Off Road applications. Recommended master cylinder sizing is ¾”.

Master Cylinder Dimensions

Bore Size 7/8"

Area (in²) 0.440

Stroke 1.38

Volume (cu in) 0.60

Master Cylinder Description

Type

Outlets

Material Aluminum / Steel

Finish Type III Ano

Reservoir

Res Type

Res Size (oz)

Res Size(cu in)

Rate

UPC Number

UPC 889545067170

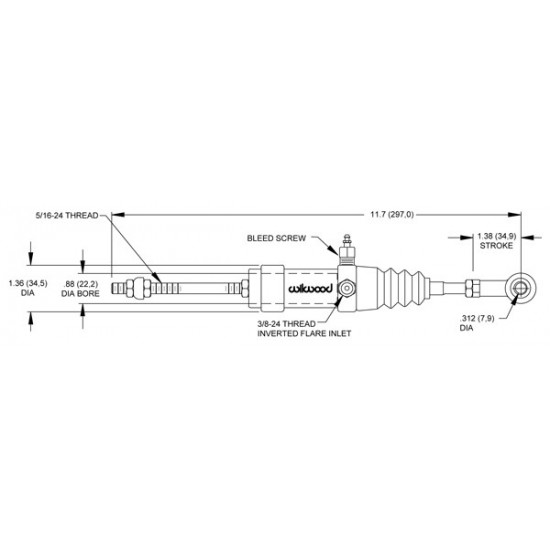

Additional Dimensions

Overall Length(in) 11.70"

Flange to End Length (in)

Inlet Size (in) 1/8-27 NPT

Inlet Fit (in) 3/8-24 IF Female

Outlet Size 1 (in)

Outlet Fit 1 (in)

Outlet Size 2 (in)

Outlet Fit 2 (in)
