Tandem Master Cylinder

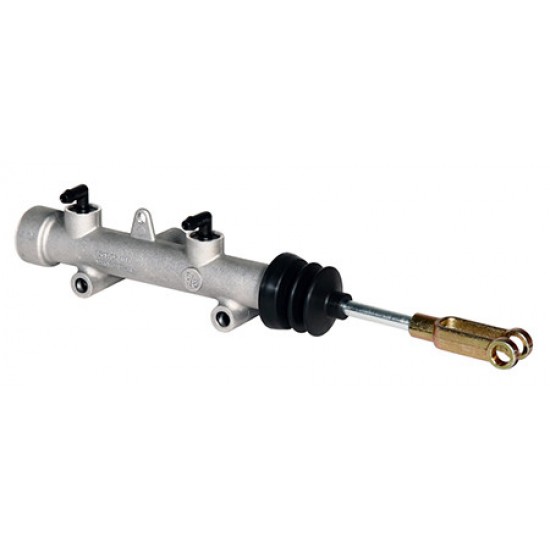

The TM1 master cylinder is manufactured from lightweight aluminum with a 5/8” bore and dual 10mm x 1.00 outlets. Side mounting on 3.53” bolt spacing using 5/16” bolts, it’s compact design is perfect for applications where space is limited. Includes push rod, dust boot and a permanent mount .39” diameter clevis. An alternative 5/16-24” threaded pushrod is available under part # 230-7134. Remote reservoir kits are available under part # 260-11098.
Master Cylinder Dimensions:
Bore Size - 5/8"
Area (in²) - 0.310
Stroke - 1.31
Volume (cu in) - 0.4
Master Cylinder Description:
Type Tandem Outlet
Outlets - 2
Material - Aluminum / Plastic
Finish - Bare
Reservoir:
Res Type - Remote

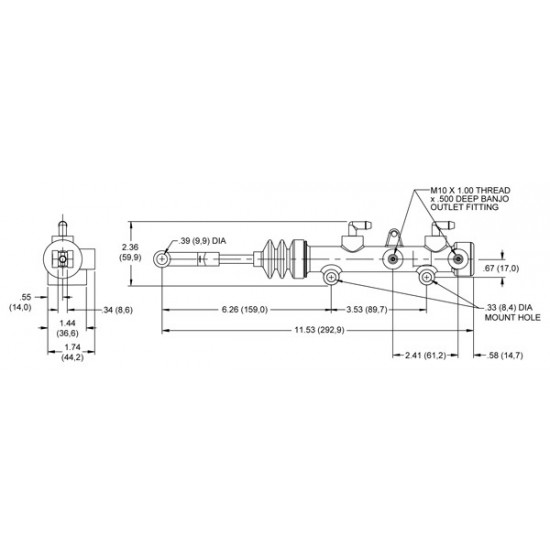

Additional Dimensions:
Overall Length(in) - 11.53"
Inlet Fit (in) - 1/4" Hose
Outlet Size 1 (in) - 10MM X 1.00
Outlet Size 2 (in) - 10MM X 1.00
